Since the beginning of 2008 Tanals has been the official "Fabricator" for the entire Gates linear Timing belt range.
The only Gates Fabricator in France.
We have access to Gates calculation software and our own resources for dimensioning your installations. Our processing and storage facilities enable us to quickly cut and splice your linear Timing belts. We can fit the most common coverings, drive guides and cleats, as well as perforating and machining in our workshops.
Our belts can be cut to length, welded, seamless or mechanically spliced.

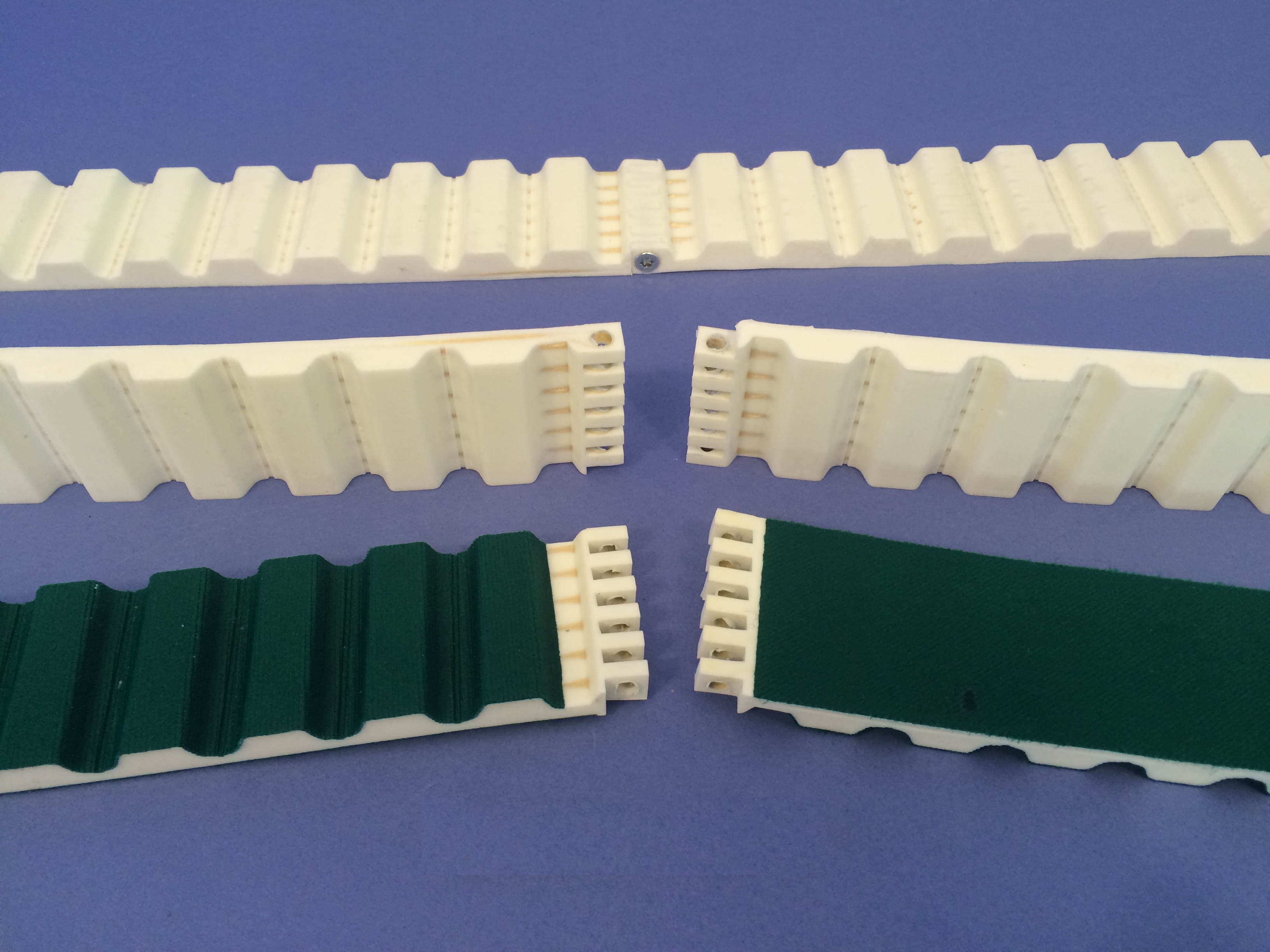

ERO Joint® HP polyurethane belts
Replace your polyurethanebelts quickly with our patented ERO Joint® HP (Hinge Pin) mechanical joint system!
Timing belts with metal spikes for transporting fish
Standard linear polyurethane timing belts
Timing belts for transporting jars and bottles
Timing Belts with Tails
Transfood timing belts
Timing belts with embedded cables
Silent Timing belts GeQo Drive
Non-standard polyurethane timing belts
Timing belts with integrated drive guides
Flex endless cable drive belts
Modular timing belts
Wide timing belts
Timing belts with coatings
ERO Joint® WT wide Timing belt for tyre manufacture
ERO Joint® WT quick-fit Belt with 3 stainless steel locking pins:
No press or special tools required for assembly.
Can be replaced without dismantling the pins or protective covers.
Production can be restarted in 15 minutes.
Approved and cleaned material suitable for transporting raw rubber before vulcanisation.
ERO Joint® HP quick-assembly Timing belt in the tyre industry
ERO Joint® HP quick-fit Belt assembled with 1 stainless steel locking pin
- No press or special tools required for assembly
- Can be replaced without dismantling the spindles or protective covers
- Production can be restarted in 15 minutes
- Resistance equivalent to a standard welded Belt
- Approved and cleaned material suitable for transporting raw rubber before vulcanisation
- Available in widths from 7 to 300mm
Available with or without nylon fabric on the back and/or surface of the teeth.
Timing belt for brick grinder
Timing belts with polyurethane or Celloflex coating
AT10 or AT20 welded or Flex belts for maximum strength.
Guide profiles and/or grooves for guidance.
50 shore polyurethane or Celloflex coating for good brick retention and abrasion resistance.
Electrified mechanical driving belt - E-belt
E-belt
- Mechanical function
Transmission of movement - Electrical function
Allows current to pass through
ERO Joint® HP quick-fit Timing belt for sheet metal conveyors
ERO Joint® HP quick-fit Belt assembled by 1 stainless steel locking rod
- No press or special tools required for assembly
- Can be replaced without dismantling the spindles or protective covers
- Production can be restarted in 15 minutes
ERO Joint® HP quick-fit Timing belt for transporting roof tiles
ERO Joint® HP quick-fit Belt assembled with 1 stainless steel locking pin
- No press or special tools required for assembly
- Can be replaced without dismantling the spindles or protective covers
- Production can be restarted in 15 minutes
ERO Joint® HP Food Belt for the fishing and aquaculture industry
ERO Joint® HP Belt for the food industry
Available in T10 and AT10 pitches with Zylon cord.
Unlike Kevlar Cords, Zylon cord does not absorb water.
Despite a "wickelnase", ERO Joint® HP plates are not affected by damp environments.
